Subminiature-C Round Cable Assemblies

Sub-C Round Cables

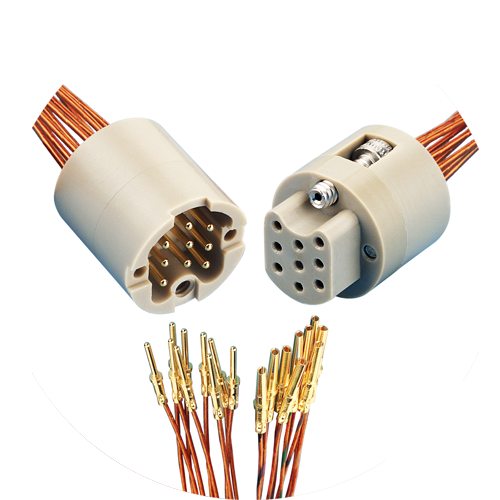

Connector to Cable Vacuum assemblies are fitted with PEEK subminiature-C female or male connectors at one end, and nine, non-terminated, color coded Kapton insulated wires at the other.   The female cable connectors mate directly onto the vacuum-side of subminiature-C UHV feedthroughs, sub-c HV feedthroughs, or with male in-vacuum cable connectors.   The cable jacket is a PEEK braid with a nominal diameter of 0.14 inches.  The nine wires are Kapton® insulated 28 AWG silver plated copper conductors, stranded 7 x 0.005.

Connector to Connector Extension Cables are fitted with PEEK subminiature-C female connectors on both ends of a 19-inch UHV Ultra-High Vacuum round cable.

Contact to Cable UHV subminiature-C round cable assemblies include crimped male or female contacts on one end, and nine, non-terminated, Kapton insulated leads at the other.
Caution: 'contact to cable' assemblies do not include PEEK connectors and will not allow subsequent connector installation, as wires must be threaded through connector back-piece before crimping contacts.

Specifications

• Subminiature-C 9-pin interface
• High temperature rated to 250ºC (Feedthrough)
• UHV compatible construction
• PEEK connectors with locking screws
• Voltage rating: 500 VDC max.
• 5 AMPs per pin (20% of pins at any given time)
• Pins: Au plated, Ni-Fe alloy
• UHV rated 1x10^-10 Torr
